Die and mold

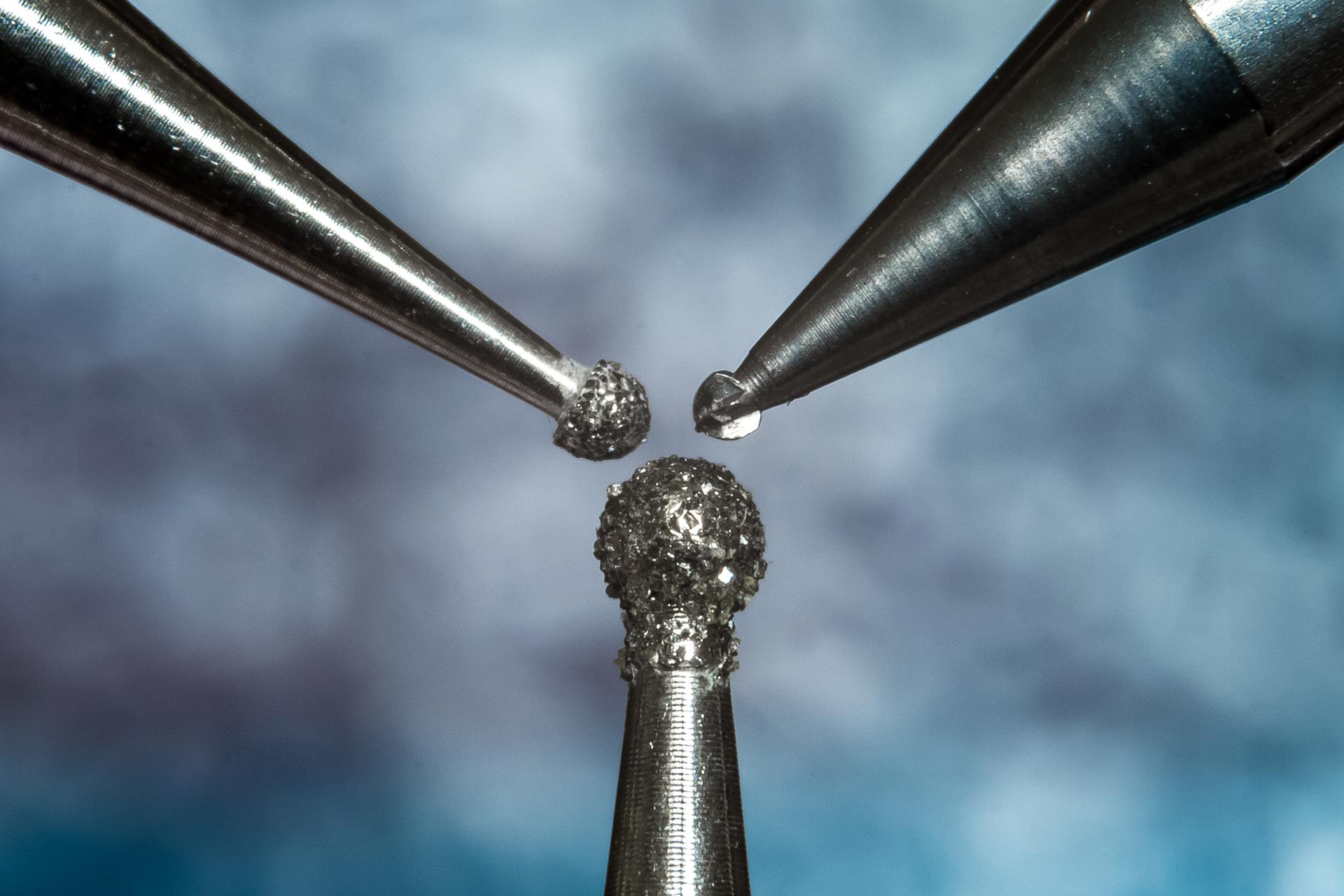

Mounted points for mold cavity finishing
Mounted points for controlled blending, small-radius finishing and access-limited work inside die and mold cavities.
Practical fit
What the grinding job usually demands
Mold and die work often needs a small abrasive body that can reach into cavities, ribs, slots and radii without changing the working profile too aggressively.
Round-nose A-series, bullet A-series and compact W-series mounted points can be reviewed by body diameter, length, shank size, grit and finish target.
Share the tool steel or mold material, current machining marks, required finish, access restriction and machine RPM before confirming the abrasive specification.
Step 1
Identify the cavity, slot, radius or rib area that needs finishing.
Step 2
Match the mounted-point shape to access and contact area.
Step 3
Confirm grit by removal requirement and final finish target.
Step 4
Check shank diameter, unsupported overhang and machine RPM before use.
Product references
Catalogue items to start the discussion
Round-Nose Cylinder
Mounted Point A5
⌀7.5 × 25 mm
A5 round-nose cylindrical shape reference with a ⌀7.5 × 25 mm body. The rounded tip supports contour blending and die or mold finishing.
Bullet Type
Mounted Point A24
⌀13 × 19 mm
A24 bullet-shape reference with a ⌀13 × 19 mm body and rounded end, intended for blending radii on dies, weld toes and casting fillets.
Small Cylinder (3 mm Shank)
Mounted Point B43
⌀5 × 8 mm
B43 small cylindrical shape reference with a ⌀5 × 8 mm body on a 3 mm shank for restricted-access precision finishing.
Cylinder Type
Mounted Point W163
⌀6 × 13 mm
W163 cylindrical shape reference with a compact ⌀6 × 13 mm abrasive body. Used for internal grinding and deburring of bores, slots and weld beads on compatible die grinders or flexible-shaft machines.
RFQ details
Include these details for a stronger quotation
- Cavity photo or drawing
- Current abrasive reference, if any
- Material, RPM and finish target
- Monthly or trial quantity
Buyer confidence
How the specification is kept practical
Abrasive grain, bond and size details confirmed before quotation
Specification review based on material, machine speed and finish target
OD, length, bore and shank fit discussed against the accepted quotation
Safe-speed details must be confirmed against product label and machine setup
Quote this application
Share the material, machine and quantity.
Sadhvi Udyog can review the abrasive shape, grit, shank or wheel size and repeat supply requirement before confirming the suitable quote.
